DCM250B Low Power TLL 3D Digital Compass Sensor Board With 0.8deg Heading Accuracy

▶ MAIN FEATURES

★ Heading accuracy: 0.8°

★ Inclination measurement range: ±85°

★ Inclination resolution: 0.1°

★ Inclination accuracy: 0.2°

★ Temperature range: -40℃～+85℃

★ DC 5V power supply

★ With hard magnetic, soft magnetic and tilt compensation

★ Standard RS232/RS485/TTL output interface

▶ APPLICATION

★ Satellite antenna searching

★ Navigation surveying

★ GPS combined navigation

★ Antenna servo control

★ Infrared imager

★ Laser rangefinder

★ Mapping

★ ROV underwater robot navigation

★ Oceanographic survey instrument

DCM250B/260B is a low-cost three-dimensional electronic compass, using hard and soft magnetic calibration algorithm, so that the compass can eliminate the influence of magnetic field through the calibration algorithm in the environment with magnetic field interference. The DCM250B&260B integrates a three-axis fluxgate sensor, calculates the heading in real time through the central processor, and uses a three-axis accelerometer to perform heading compensation for a wide range of tilt angles, ensuring that the compass can also provide high accuracy at tilt angles up to ±85° Heading data. The electronic compass integrates high-precision MCU control and diversified output methods. The standard interfaces include RS232/RS485/TTL and other interfaces, and other communication interfaces can be customized.

The DCM250B/260B is small size, low in power consumption, and can be used in many fields such as stable antennas, vehicles, system integration, etc. The high shock resistance and high reliability also make the compass work normally in extremely harsh environments, and is more suitable for today's Precision measurement integrated control system.

▶ SPECIFICATIONS

DCM250B/260B Parameters
Compass heading parameters	Heading accuracy	0.8°
	Resolution	0.1°
Compass inclination parameter	Pitch accuracy	0.1°<15°(measure range)
		0.2°<30°(measure range)
		0.3°<60°(measure range)
	Pitch range	±85°
	Rolling accuracy	0.1°<15°(measure range)
		0.2°<30°(measure range)
		0.3°<60°(measure range)
	Roll range	±85°
	Resolution	0.1°
	Tilt compensation angle range	<40°
calibration	Hard iron calibration	Yes
	Soft iron calibration	Yes
	Magnetic field interference calibration method	Rotate horizontally one round (2D calibration)

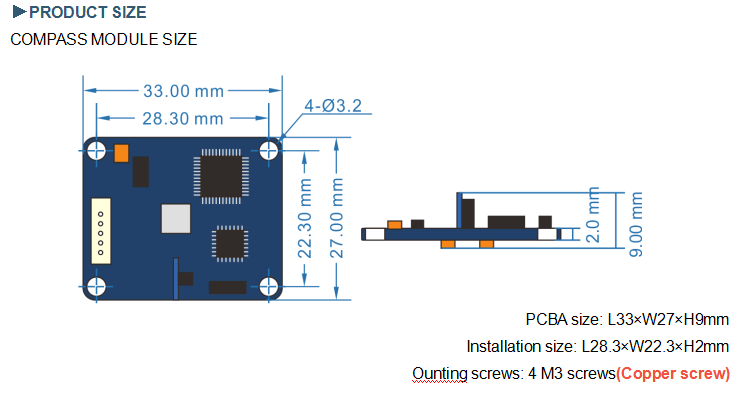

Physical characteristics	Size	Shell size:L55×W37×H24mm
		PCBA size: L33×W27×H9mm

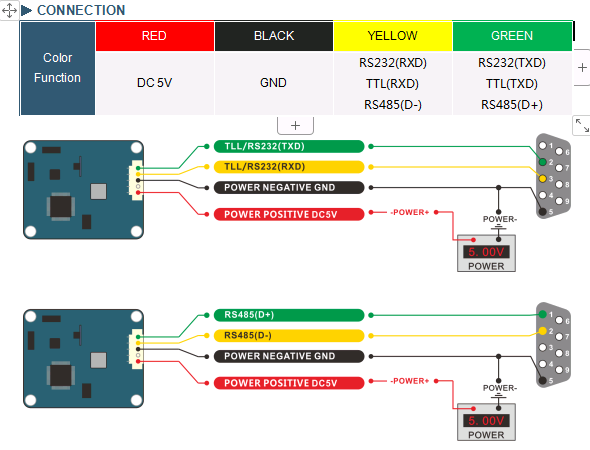

	RS232/RS485/TTL	Shell: 4 PIN 1-meter direct lead
		PCBA: 4PIN 30cm terminal cable
Interface	Start delay	<50mS
	Output rate	20Hz/s
	Baud rate	2400 to 19200baud
	Output format	Binary high-performance protocol
Power supply	Supply voltage	(default) DC+5V
		(optional) DC 9～36V
	Current (MAX)	45mA
	Ideal mode	35mA
	Sleep mode	TBD
Environment	Operating range	-40℃～+85℃
	Storage temperature	-40℃～+100℃
	Anti-vibration performance	2500g
EMC	According to EN61000 and GBT17626
MTBF	≥40000 hours/time
Insulation resistance	≥100MΩ
Impact resistance	100g@11ms, three direction (half sinusoid)
Anti-vibration	10grms,10～1000Hz
Weight	Single board: ≤25g ≤135g (including 1 meter cable)
