    Rion Imu400 9 Axis Inertial Navigation Module For Automated Agricultura Machinery

    Ask Lasest Price
    Brand Name : RION
    Model Number : IMU400
    Certification : CE, FCC,ROHS , ISO
    Price : US$29.50
    Payment Terms : T/T or Paypal
    Delivery Time : 5-10 days
    • Product Details
    • Company Profile

    Rion Imu400 9 Axis Inertial Navigation Module For Automated Agricultura Machinery

    RION IMU400 INERTIAL NAVIGATION MODULE 9 AXIS OUTPUT SENSOR FOR AUTOMATED AGRICULTURA MACHINERY


    GENERAL DESCRIPTION

    IMU400 is a gyroscope IMU specialized in agricultural machinery autopilot navigation applications, built-in industrial three-axis gyroscope and three-axis accelerometer. The product can still output smooth attitude data in the case of high vibration characteristics of agricultural machinery. It is developed based on MEMS inertial measurement platform. Through the dynamic attitude algorithm of the angular rate of the gyroscope, real time output the dynamic inclination, horizontal azimuth, three-axis angular rate, three-axis acceleration and forward axial body acceleration of the object ; It can also provide real-time feedback counting output through Z-axis single axis integral output to make the front wheels of agricultural machinery turn at a precise angle; This product is specially used for automatic agricultural machinery, precision operation, and efficiency. It is an essential component of the new generation of automatic precision agricultural control.


    KEY FEATURES

    ★ Horizontal azimuth angle & attitude angle output

    ★ Real time output angular rate

    ★ Light weight

    ★ Long life,strong stability

    ★ Forward axis acceleration output

    ★ All solid state

    ★ Compact & light design

    ★ TTL output

    ★ 3.3VDC power supply


    APPLICATION

    ★ Automated agricultural machinery

    ★ Precision agriculture

    ★ Combination harvester

    ★ Cultivator


    SPECIFICATION


    IMU400Parameters
    Triaxial attitudeAzimuth Angle ±180°,Roll ±180°,Pitch ±90°
    Operational bandwidth>100Hz
    Resolution0.01°
    Nonlinear0.1% of FS
    GyroTriaxial gyro range250°/s
    Bias instability(allan)4.5°/h
    Angle random walk coefficient(allan)0.25°/sqrt(h)
    Bias stability(10s mean value )8.5°/h
    Gyro bias(@Temp. -10℃~+65℃)±0.25°/s(RMS)
    AccelerometerRange±4g / ±8g(optional)
    ResolutionTest conditions @4g range0.001g
    Accuracy1mg
    Bias instability(allan)0.05mg
    Speed random walk coefficient(allan)0.015m/s/sqrt(h)
    Bias stability(10s mean value)0.15mg
    Starting time500ms
    Input voltageDC3.3V(Ripple<50mVpp)
    Current70mA
    Working temperature-40 ~ +80℃
    Storage temperature-40 ~ +85℃
    Vibration5g~10g
    Impact200g pk,2ms,½sine
    Working life10 years
    Output rate5Hz,15Hz,25Hz,35Hz,50Hz,100Hz can set
    Output signal3.3V-TTL
    MTBF≥98000 Hours/time
    Impact resistance100g@11ms,3 Axial Direction (Half Sinusoid)
    Anti vibration10grms,10~1000Hz
    Weight≤5g



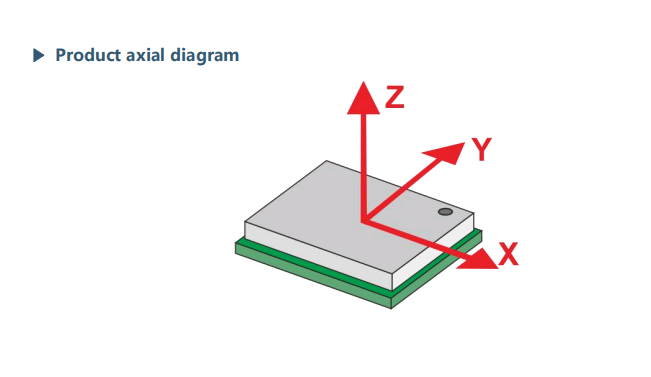

    ▶ PIN DEFINITION

    PinsNetworkDescription
    1BOOT0MCU BOOT0 pin,suspended or lowered normal startup
    2RESETMCU Reset pin, low level reset
    3GNDPower GND
    4GNDPower GND
    5GPIO1MCU GPIO pin(spare)
    6VCC(3.3V)Power input
    7NCEmpty
    8NCEmpty
    9GNDPower GND
    10VCC(3.3V)Power input
    11NCEmpty
    12NCEmpty
    13UART3_RXMCU Serial port 3 receiving,TTL level ,RESERVED
    14UART3_TXMCU Serial port 3 sending,TTL level,RESERVED
    15GPIO2MCU GPIO pin(Spare)
    16UART1_TXModule main serial port sending,TTL level
    17UART1_RXModule main serial port receiving,TTL level
    18GNDPower GND
    19SWDIOMCU SWD Pins for debugging and upgrading
    20SWCLKMCU SWD Pins for debugging and upgrading
