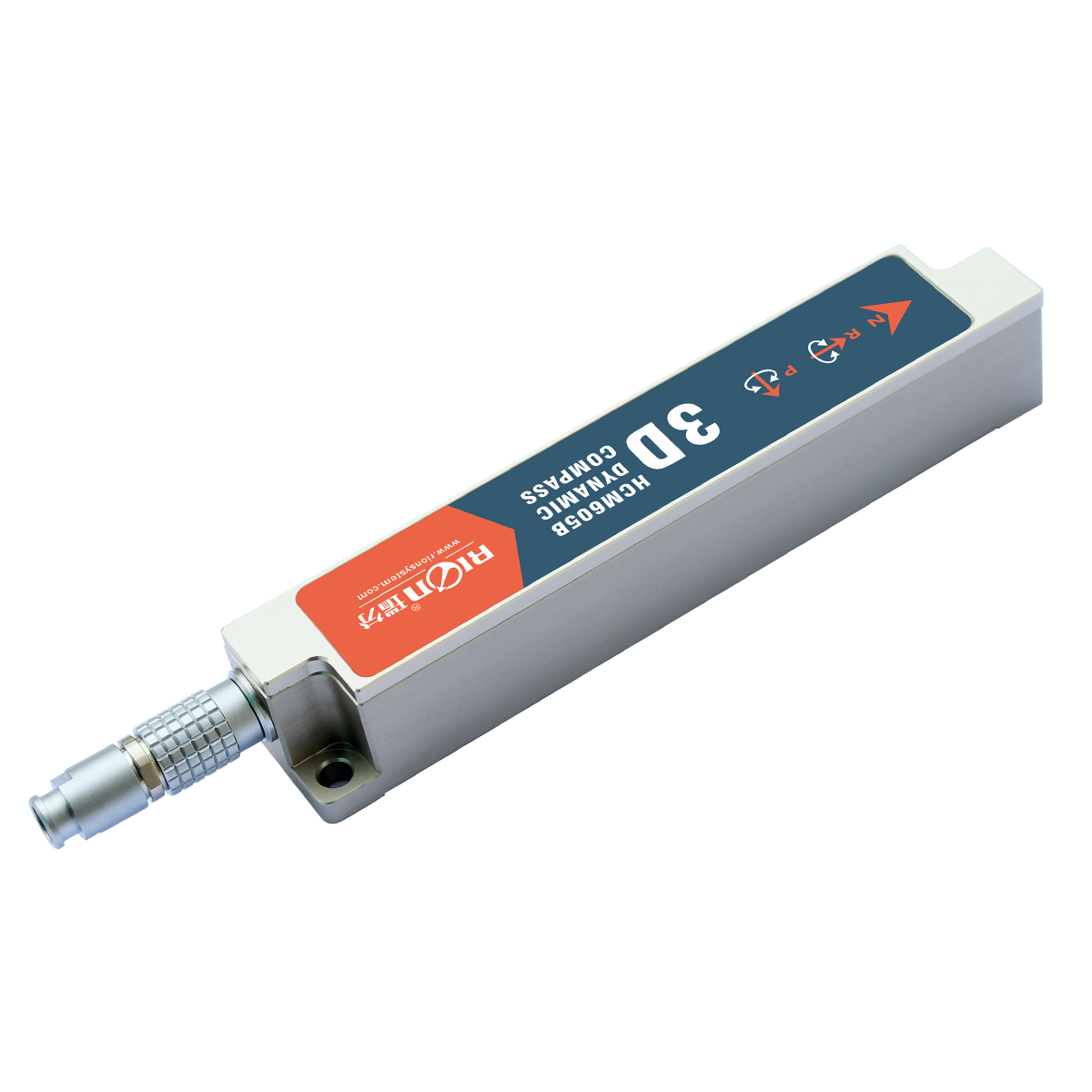

    HCM600/HCM605 3D Digital Dynamic Compass Sensor With 0.3-0.5° Heading Accuracy

    Ask Lasest Price
    Brand Name : RION
    Model Number : HCM605B-232
    Certification : CE, ISO
    Price : $510.00/Units
    Payment Terms : T/T, Paypal
    Supply Ability : 1000 pcs per month
    Delivery Time : 7 days for sample
    • Product Details
    • Company Profile

    HCM600/HCM605 3D Digital Dynamic Compass Sensor With 0.3-0.5° Heading Accuracy

    High Precision Anti-interference Dynamic Electroninc Digital Compass Sensor For Various Industry Using

    FEATURE

    ★ Heading Accuracy: 0.3°~0.5°

    ★ Roll Range:±180°

    ★ Tilt Resolution: 0.1°

    ★ Tilt Accuracy: <0.2°(Full Range)

    ★ Dimension: L110×W19.5×H19.5mm

    ★ With Hard-Soft Magnetic And Tilt Compensation

    ★ RS232/RS485/TTL


    APPLICATION

    ★ Satellite Antenna Search Satellite

    ★ Gps Integrated Navigation

    ★ Antenna Servo Control

    ★ Infrared Imager

    ★ Laser Range Finder

    ★ Map For Plotter

    ★ Rov Underwater Robot Navigation

    ★ Oceanography Measurement Instruments

    ★ Special Occasion Robot


    PRODUCT INTRODUCTION

    HCM600/HCM605 is a dynamic and high-precision 3 axis electronic compass, it has three working modes: pure compass, 9-axis fusion mode and 9-axis fusion anti-jamming mode (anti-temporary-interference). with high performance, reliability, small size and low power consumption, it is suitable for measuring attitude and heading angles in many fields such as antenna stabilityand vehicles. User can order complete product with housing (up to IP67 waterproof level) or compass module.


    HCM600B/HCM605B parameters
    headingHeading accuracy0.5° tilt<10°
    Resolution0.1°
    Tilt parametersPitch accuracy0.1°<15°(measure range)
    0.1°<30°(measure range)
    0.1°<60°(measure range)
    0.2°<85°(measure range)
    Pitch range±85°
    Roll accuracy0.1°<15°(measure range)
    0.1°<30°(measure range)
    0.1°<60°(measure range)
    0.2°<180°(measure range)
    Roll range±180°
    Resolution0.1°
    CalibrationHard iron calibrationYes
    Soft iron calibrationYes
    Magnetic interference calibrationRotate 360deg horizontally; vertical rotation(option)
    Physical featureSizeL111.5×W19.5×H19.5mm
    Weight≤85g(exclude cable)
    RS232/RS485/TTL5PIN quick plug connector
    interfaceStart delay<50ms
    Max output speed20Hz/s
    Communication speed2400 to 115200baud (default 9600)
    Output formatBinary High-performance Protocol
    PowerPower voltage(default) DC+5V
    Current(max)30mA
    Ideal mode26mA
    Hibernate modeTBD
    EnvironmentOperating range-40℃~+85℃
    Storage temperature-40℃~+85℃
    Vibration resistance100g
    ProtectionIP67
    Electromagnetic compatibilityAccording to EN61000 and GBT17626
    MTBF≥40000 hours/time
    Insulation resistance≥100mego-ohm
    Impact resistant100g11ms, 3 Axial Direction (Half Sinusoid)
    Anti-Vibration10grms, 10~1000Hz
