    DCM260B IP67 Protection Dynamic 3D Digital Compass Sensor 0.8° Heading Accuracy

    Ask Lasest Price
    Brand Name : RION
    Model Number : DCM260B-232
    Certification : CE, FCC,ROHS , ISO
    Price : $99.00 - $115.00/Pieces
    Payment Terms : T/T, L/C
    Supply Ability : 100000 Piece/Pieces per Month
    Delivery Time : 5-10 work days
    • Product Details
    • Company Profile

    DCM260B IP67 Protection Dynamic 3D Digital Compass Sensor 0.8° Heading Accuracy

    DCM260B IP67 Protection Dynamic 3D Digital Compass Sensor 0.8° Heading Accuracy


    PRODUCT DESCRIPTION

    DDM350B / DDM360B is a three-dimensional dynamic electronic compass, which integrates a 9-axis inertial measurement unit, including a three-axis accelerometer, a three-axis gyroscope, and a three-axis fluxgate. Utilizing the high dynamic angle characteristics of the gyroscope and the highly stable attitude characteristics of the accelerometer, the pitch and roll angles that follow the complex attitude changes are obtained through the dynamic inertial navigation algorithm. The geomagnetic azimuth angle adopts hard magnetic and soft magnetic calibration algorithms, so that the compass can eliminate the influence of the magnetic field through the calibration algorithm even in the environment with magnetic field interference. The heading is calculated in real time by the central processor, and the dynamic pitch and roll angles are used for dynamic heading compensation for a wide range of magnetic azimuths, ensuring that the compass can provide high-precision heading data even at tilt angles of up to ±85°. The electronic compass integrates a high-level DSP arithmetic processor with diversified output modes. The standard interfaces include RS232/RS485/TTL and other interfaces, and other communication interfaces can be customized.


    MAIN FEATURES

    ★ Inclination angle measurement range: pitch ±85°, roll angle ±180°

    ★ With hard magnetic, soft magnetic and tilt angle compensation

    ★ Standard RS232/RS485/TTL output interface

    ★ Azimuth angle accuracy: 0.8°

    ★ Inclination resolution: 0.1°

    ★ Inclination accuracy: 0.2°

    ★ Wide temp. range: -40℃~+85℃

    ★ Dimesion: L55×W37×H24mm

    ★ DC 5V power supply

    ★ IP67 waterproof rating


    Electrical Characteristics


    DDM350B/DCM360B Parameter
    Compass headingHeading accuracy0.8°
    Resolution0.1°
    Pitch range±90°
    Roll range±180°
    Inclination accuracyStatic state 0.2°
    Dynamic 0.5°
    Resolution0.1°
    Tilt compensation angle rangeRoll ±180°
    Pitch <85°
    CalibrationHard iron calibrationyes
    Soft iron calibrationyes
    Magnetic field interference calibration methodOne rotation of the plane (two-dimensional calibration)
    Physical featureSizeShell size:L55×W37×H24mm
    PCBA size: L33×W27×H9mm

    RS232/RS485/TTL

    Interface connection line

    Shell : 4PIN 1m direct lead
    Single-board : 4 PIN 30cm terminal wire
    InterfaceStartup delay<50ms
    Output rate20Hz/s
    Baud rate2400 to 115200baud
    Output formatBinary high performance protocol
    PowerSupply voltage(Default) DC +5V
    (Customized) DC 9~36V
    Current (MAX)45mA
    Ideal model35mA
    Sleep modeTBD
    EnvironmentOperating range-40℃~+85℃
    Storage temperature-40℃~+85℃
    Vibration resistance2500g
    EMCAccording to EN61000 and GBT17626
    MTBF≥98000 hours/time
    Insulation resistance≥100 megohm
    Impact resistance100g@11ms,3 Axial Direction (Half Sinusoid)
    Anti-vibration10grms,10~1000Hz
    WeightSingle board: ≤25g ≤135g (including 1 meter cable)

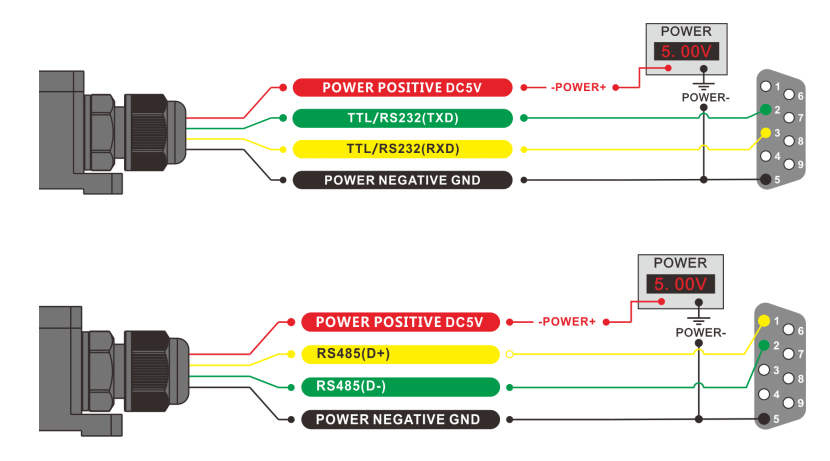

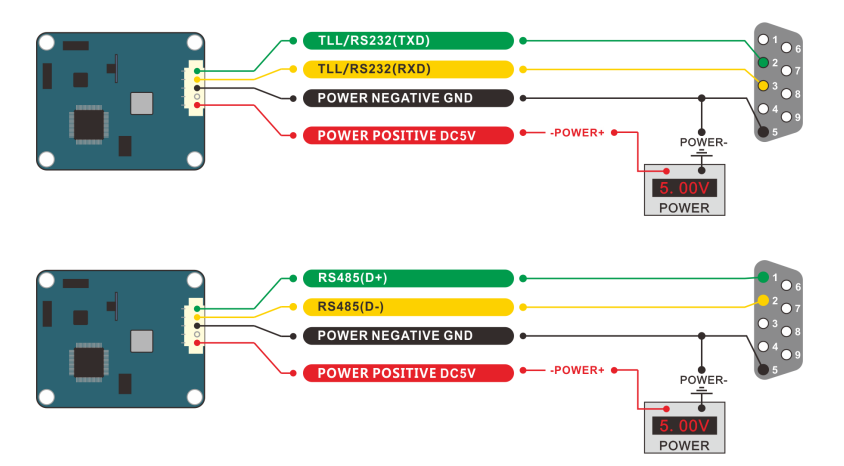

    ▶ CONNECTION

    Color

    Function

    REDBLACKYELLOWGREEN
    DC 5VGND

    RS232(RXD)

    TTL(RXD)

    RS485(D-)

    RS232(TXD)

    TTL(TXD)

    RS485(D+)

    Color

    Function

    REDBLACKYELLOWGREEN
    DC 5VGND

    RS232(RXD)

    TTL(RXD)

    RS485(D+)

    RS232(TXD)

    TTL(TXD)

    RS485(D-)
