    High Accuracy 3D Compass Inclinometer For Antenna Stabilization

    Ask Lasest Price
    Brand Name : RION
    Model Number : DCM302B-232
    Price : $250.00 - $270.00/Pieces
    Supply Ability : 30000 Piece/Pieces per Month
    • Product Details
    • Company Profile

    High Accuracy 3D Compass Inclinometer For Antenna Stabilization

    High Accuracy 3D Compass Inclinometer for Antenna Stabilization & Vehicle Navigatio



    INTRODUCTION


    DCM301B/DCM302B is a 3D electronic compass with high precision using two-dimensional plane calibration algorithm. The calibration does not require a three-dimensional attitude tilt, and only needs to rotate the plane in place to complete the calibration process. Using hard magnetic and soft magnetic calibration algorithms, the compass can achieve ideal measurement results through three-dimensional calibration in an environment with magnetic interference. This compass integrates three-axis magnetic sensing technology, which can calculate the heading in real time through the central processing unit, and A three-axis accelerometer is used to compensate for a wide range of tilt angles to ensure that the compass can provide accurate heading data even at tilt angles of up to ±85°. The electronic compass integrates high-precision MCU control, with diversified output modes. The standard interfaces include RS232/RS485/TTL and other interfaces, and other communication interfaces can be customized.

    DCM302B is small, low in power consumption, and can be used in many fields such as antenna stability, vehicles, and system integration. Its high shock resistance and high reliability also enable the compass to work normally in extremely harsh environments, and it is suitable for high-precision measurement integration control system.


    APPLICATION


    ★ Satellite antenna search satellite

    ★ Marine navigation surveying and mapping

    ★ GPS integrated navigation

    ★ Antenna servo control

    ★ Infrared imager

    ★ Laser range finder

    ★ Map for plotter

    ★ ROV underwater robot navigation

    ★ Oceanography measurement instruments


    ▶ SPECIFICATION


    DCM301B / DCM302BPARAMETER
    Compass headingThe best heading accuracy0.5°
    Resolution0.1°
    Compass tilt parameterPitch accuracy0.1°<15°(Measure range)
    0.2°<30°(Measure range)
    0.3°<60°(Measure range)
    0.3°<85°(Measure range)
    Pitch tilt range±85°
    Roll accuracy0.1°<15°(Measure range)
    0.2°<30°(Measure range)
    0.3°<60°(Measure range)
    0.3°<85°(Measure range)
    Roll tilt range±85°
    Resolution0.1°
    The best tilt compensation range<40°
    CalibrationHard iron calibrationYes
    Soft iron calibrationYes
    Magnetic field interference calibration methodPlane rotation in 1circle(2D Calibration)
    Physical featuresDimensionL60×W59×H29mm
    WeightPCB:20g,with shell:100g
    RS-232/RS485/TTL interface connector5PINconnector
    Interface featuresStart delay<50MS
    Maximum output rate20Hz/s
    Communication rate2400 to 19200baud
    Output formatBinary high performance protocol
    PowerPower supply(Default)DC+5V
    (Customized)DC9~36V
    Current(Maximum)40mA
    Ideal mode30mA
    Sleep ModeTBD
    EnviromentOperating range-40℃~+85℃
    Storage temperature-40℃~+85℃
    Resistance shock performance2500g
    Electromagnetic compatibilityAccording to EN61000 and GBT17626
    MTBF≥40000 hours/times
    Insulation≥100M
    Anti-shock100g@11ms,3 Axial Direction (Half Sinusoid)
    Anti-vibration10grms,10~1000Hz

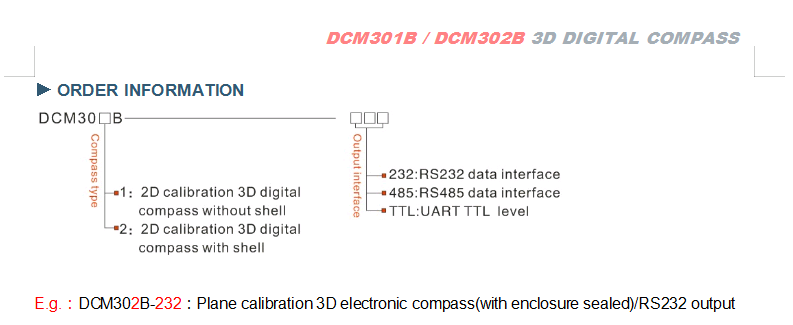

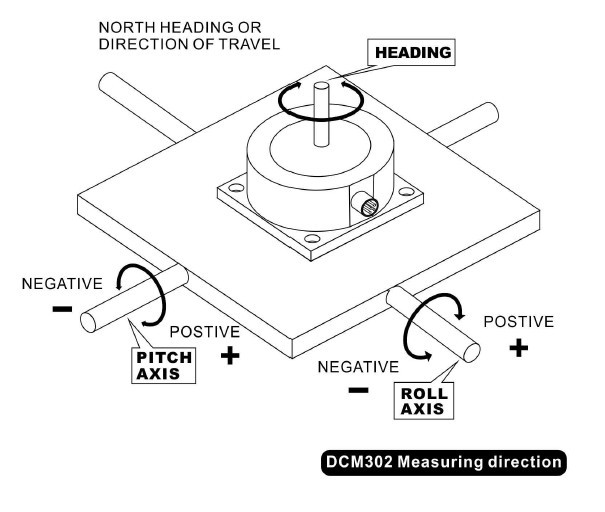

    HOUSING SIZE
