HCA516T/HCA526T High Precision CANOPEN Type Inclinometer​ With Good Temperature Drift

▶ GENERAL DESCRIPTION

HCA516T/HCA526T-CANOPEN is a high accuracy inclinometer developed by RION company, inherit the stability of the SCA series, while the accuracy be effectively improved, and the temperature drift performance with much more excellence , in addition the system with built-in high-precision 16bit A / D differential converter, meanwhile through 5 filtering algorithm, which can measure the angle of sensor output relative to the horizontal tilt and pitch tilt. The output interface CANOPEN are optional.Because of Built in ADI company’s high precision digital temperature sensor that can correct the sensor temperature drift in accordance with the changes of the built-in temperature sensor(temperature output are optional), to ensure high repeatability of the product in the low-temperature and high-temperature environment. The output frequency response most up to 100Hz, for higher response frequency Division we can customize according to the user requests. The products are truly industrial-grade products, reliable performance, scalability. Suitable for a variety of harsh industrial control environment.

▶ FEATURES

★ Dual axis inclination measurement

★ Range ±1°～ ±35° optional

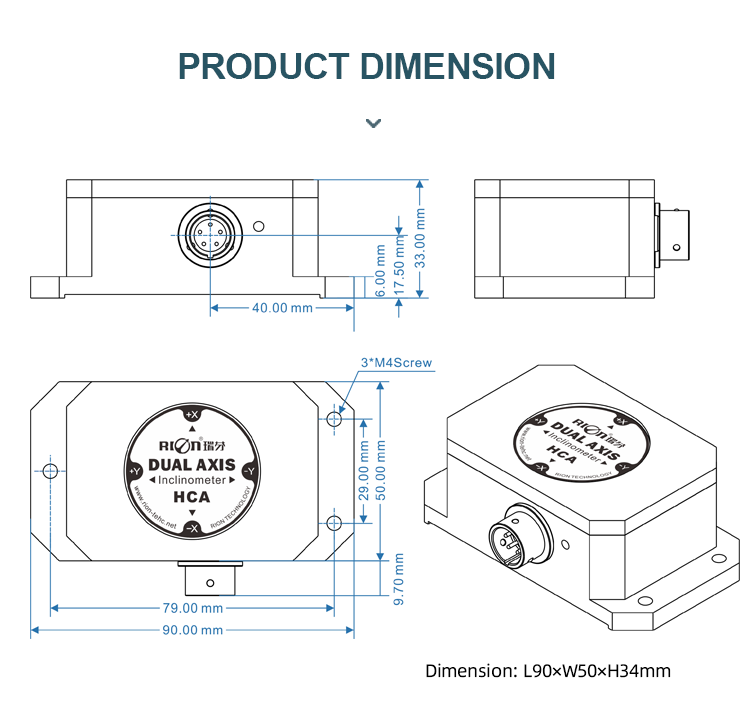

★ Size: 90 × 50 × 34mm

★ DC 9～36V wide voltage input

★ Wide temperature operation -40℃～+ 85℃

★ Resolution 0.001 °

★ IP67 protection level

★ High vibration resistance> 2000g

★ Waterproof aviation plug

▶ APPLICATION

★Satellite positioning Search

★Rail-mobile monitoring

★engineering mechanical measurement of dip angle

★oil-well drilling equipment

★Radar detection of vehicle platform 　

★Underground drill posture navigation

★Based on the angle direction measurement

★Satellite communications vehicle posture detection

★Shield pipe jacking application

★Ship’s navigation posture measurement

★Geological equipment inclined monitoring

HCA516/526T-C1	CONDITION	PARAMETERS		UNIT
Measure range		±10	±35	°
Measure axis		XY	XY
Resolution		0.001	0.001	°
Measure accuracy	@25℃	0.005	0.01	°
Long term stability		0.01	0.02	°
Zero Temp.coefficient	-40～85℃	±0.002	±0.002	°/℃
Sensitivity temp. coefficient	-40～85℃	≤50	≤50	ppm/℃
Power on time		0.5	0.5	S
Response time		0.02	0.02	s
Output rate	5Hz,15Hz,35Hz,50Hz can be set
Output signal	CANOPEN
EMC	According to EN61000 and GBT17626
MTBF	≥50000hours/times
Insulation Resistance	≥100MΩ
Shockproof	100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration	10grms,10～1000Hz
Protection grade	IP67
Cables	Standard configuration: 1m length, wear-resistant, wide temperature, shielded cable 4*0.4mm2 aviation connector
Weight	≤250gg(without cable)
