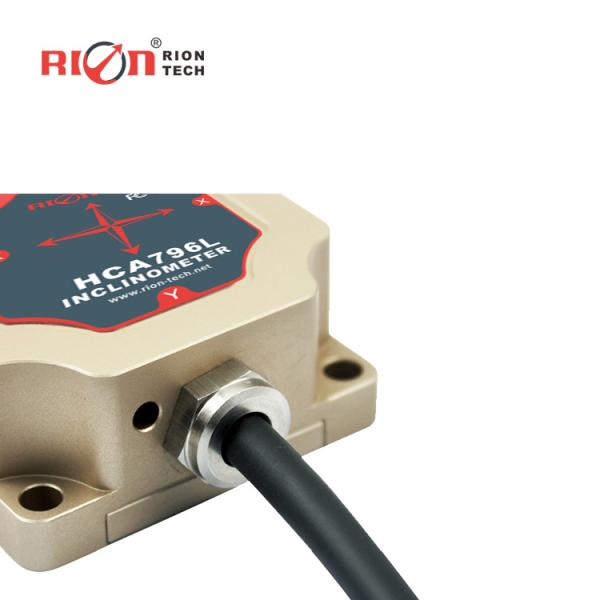

    HCA796L-T LOW POWER CONSUMPTION INCLINOMETER IP67 RESOLUTION 0.001°

    HCA796L-T LOW POWER CONSUMPTION INCLINOMETER IP67 RESOLUTION 0.001°


    GENERAL DESCRIPTION

    HCA796L is a small-volume high-precision dual-axis inclinometer developed by RION Technology for industrial field control. It is professionally used in industrial engineering industries such as foundation pit tilt measurement, monitoring, and bridge inspection. Strong stability, high accuracy, excellent temperature drift performance, long-term stability is less than 0.01 degrees. At the same time, the roll angle and pitch angle of the sensor can be solved through the 5th order filtering algorithm and the compound calculation of the 3-axis gravity. Each product corrected by the error of the three-axis cross axis through a multi-sided turntable inside the factory to ensure that the product has the smallest influence between the measuring axes when the product is in a large range. The product has a built-in RS485 interface, and the interface integrates a protection circuit to ensure that it will not affect the 485 bus. The power supply also uses multi-level voltage regulation and overvoltage and overcurrent protection circuits. The product belongs to a real industrial grade product with reliable performance and good scalability, suitable for various harsh industrial control environments.


    FEATURES

    Dual axis measurement

    Measure range ±90°

    Size: 56×46×20.5mm

    Resolution 0.001°

    DC 6~15V wide voltage input

    IP67 protection level

    Direct lead interface

    High vibration resistance> 100g

    Wide temperature operation -40~+85℃



    APPLICATION

    Foundation pit tilt detection

    Railway locomotive monitoring

    Oil drilling equipment inspection

    Bridge pier monitoring

    Underground drilling rig attitude inspection

    Application of shield jacking

    Direction measurement based on dip angle

    Geological equipment tilt monitoring

    Various construction machinery inclination angle measurement


    SPECIFICATIONS

    HCA796L-T LOW POWER CONSUMPTION INCLINOMETER IP67 RESOLUTION 0.001°HCA796L

    CONDITION

    PARAMETER

    UNIT

    Measure range

    ±15

    ±90

    °


    Measure axis

    X Y

    X Y

    Axis


    Resolution

    0.001

    0.001

    °


    Measure accuracy

    @25℃

    0.01

    0.03

    °(RMS)


    Long term stability

    <0.01

    <0.01

    °


    Zero Temp.coefficient

    -4085℃

    0.0008

    0.0008

    °/℃


    Sensitivity

    temp. coefficient

    -4085℃

    ≤0.01

    ≤0.01

    %/℃


    Power on time

    0.5s


    Response time

    0.02s


    Response frequency

    >20HZ


    Output signal

    RS485


    Communication protocol

    MODBUS RTU protocol


    EMC

    According to EN61000 and GBT17626


    MTBF

    98000 hours/times


    Insulation Resistance

    ≥100


    Shockproof

    100g@11ms,3 Axial Direction (Half Sinusoid)


    Anti-vibration

    10grms,101000Hz


    Protection grade

    IP67


    Cables

    Standard configuration: 1m length, wear-resistant, oil-proof ,wide temperature, shielded cable 4*0.4mm2


    Weight

    ≤ 150g (including 1m cable)


    MEASURING DIRECTIONS

    The installation must guarantee the product bottom is parallel to measured face,and reduce the influence of dynamic and acceleration to the sensor. This product can be installed horizontally or mounted vertically , for installation please refer to the following scheme.

    HCA796L-T LOW POWER CONSUMPTION INCLINOMETER IP67 RESOLUTION 0.001°

    PRODUCTION INSTALLATION NOTES

    Please follow the correct way to install tilt sensor, incorrect installation can cause measurement errors, with particular attention to the "surface", "line"::1)The Sensor mounting surface and the measured surface must be fixed closely, smoothly, stability,if mounting surface uneven likely to cause the sensor to measure the angle error.

    2) The sensor axis and the measured axis must be parallel ,the two axes do not produce the angle as much as possible.

    HCA796L-T LOW POWER CONSUMPTION INCLINOMETER IP67 RESOLUTION 0.001°

    COMMUNICATION PROTOCOL

    1. Protocol type: MODBUS protocol

    Communication format: Format: 1 start bit, 8 data bits, no parity bit, 1 stop bit; the default baud rate is 9600.

    Frame format:

    HCA796L-T LOW POWER CONSUMPTION INCLINOMETER IP67 RESOLUTION 0.001°
