    ACA6 HIGH ACCURACY DIGITAL TYPE MODBUS TILT SENSOR WITH FULL TEMP-COMPENSATION

    Ask Lasest Price
    Brand Name : Rion
    Model Number : ACA6-MB
    Certification : CE, ISO
    Price : $680.00/Pieces >=1 Pieces
    Payment Terms : T/T,Paypal
    Supply Ability : 3000 Piece/Pieces per Month
    Delivery Time : 7 days for samples
    • Product Details
    • Company Profile

    ACA6 HIGH ACCURACY DIGITAL TYPE MODBUS TILT SENSOR WITH FULL TEMP-COMPENSATION

    ACA6 HIGH ACCURACY DIGITAL TYPE MODBUS TILT SENSOR WITH FULL TEMP-COMPENSATION


    Optimized English Introduction:

    ACA616T/ACA626T is a high-precision, full-temperature-compensated single/dual-axis tilt sensor with MODBUS digital output, developed by RION Technology based on an advanced precision tilt platform. Featuring excellent temperature stability, it operates reliably in wide temperature ranges from -40℃ to 85℃, making it ideal for long-term outdoor equipment monitoring and leveling.

    Key Features:

    • Built-in high-precision 24-bit differential A/D converter;

    • Fifth-order filtering algorithm ensures precise measurement of tilt and pitch angles relative to horizontal;

    • Available with RS485, RS232, or TTL output interfaces for flexible system integration;

    • Non-contact installation design—simply mount the sensor on the object's surface with screws, no alignment required;

    • Strong resistance to electromagnetic interference, shock, and vibration;

    • Offers a significant competitive edge among domestic peers, tailored for high-end industrial applications.


    MAIN FEATURES

    Single / dual axis inclination measurement Wide voltage input: 9~36V

    Measure Range :±90° optional IP67 protection grade

    Wide temperature working: -40~+85℃ Resolution: 0.001°

    Highly anti-vibration performance >2000g Water-proof air-plug

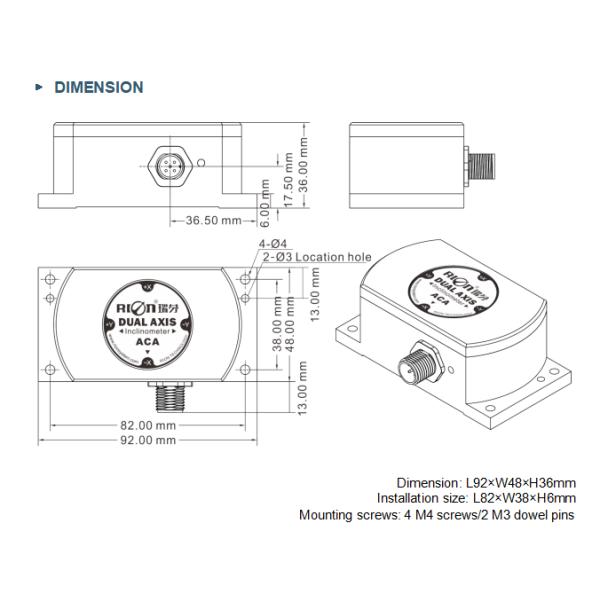

    Output mode RS232/RS485/RS422/TTL are optional Size: 92×48×36mm

    APPLICATION FIELD

    Engineering vehicles automatic leveling Bridge & dam detection

    Laser equipment position Medical facilities angle control

    Underground drill posture navigation Precise machine tool level control

    Geological equipment inclined monitoring

    Railway gauging rule , gauge equipment leveling


    SPECIFICATIONS

    ACA6 HIGH ACCURACY DIGITAL TYPE MODBUS TILT SENSOR WITH FULL TEMP-COMPENSATIONACA616T/ACA626T

    Conditions

    Parameters

    Unit

    Measure range

    ±10

    ±30

    ±60

    ±90

    °

    Measure axis

    X/XY

    X/XY

    X/XY

    X/XY

    AXIS

    Resolution

    0.001

    0.001

    0.001

    0.001

    °

    Measure accuracy

    @25℃

    0.003

    0.01

    0.02

    0.03

    °(RMS)

    Zero Temp. coefficient

    -40~+85℃

    ±0.0004

    ±0.0004

    ±0.0004

    ±0.0004

    °/℃

    Sensitivity temp-coeffi

    -40~+85℃

    ≤50

    ≤50

    ≤50

    ≤100

    ppm/℃

    Power on time

    0.5

    0.5

    0.5

    0.5

    S

    Response frequency

    20Hz

    Output rate

    5Hz / 15Hz / 35Hz / 50Hz can be setting

    output signal

    RS232 / RS485 / RS422 / TTL

    Communication protocol

    RION 68 protocol / MODBUS protocol

    EMC

    According to EN61000 and GBT17626

    MTBF

    98000 hours/times

    Insulation Resistance

    ≥100MΩ

    Shockproof

    100g@11ms / 3 Axial Direction (Half Sinusoid)

    Anti-vibration

    10grms / 10~1000Hz

    Protection grade

    IP67

    Cables

    Standard 2m long, wear-resistant, wide temperature, shielded cable 5p * 5.7 mm aviation connector

    Weight

    ≤220g(without cable)


    WORKING PRINCIPLE

    Adopt imported core control unit and apply the principle of capacitive micro-pendulum. Using the principle of earth's gravity, when the tilting unit tilts, the earth's gravity will produce a gravitational component on the corresponding pendulum, and the corresponding electric capacity will change. By amplifying and filtering the electric capacity, the inclination is obtained after conversion.
