    3 Axis Gyro Compass Sensor 0.1deg Resolution For Heading Angle Finding

    Ask Lasest Price
    Brand Name : RION
    Model Number : DDM360
    Price : $99.00 - $115.00/Pieces
    Payment Terms : T/T, L/C
    Supply Ability : 100000 Piece/Pieces per Month
    Delivery Time : 5-10 work days
    Certification : CE
    • Product Details
    • Company Profile

    3 Axis Gyro Compass Sensor 0.1deg Resolution For Heading Angle Finding

    3 axis gyro compass sensor 0.1deg resolution heading angle sensor for heading angle finding


    ▶ MAIN FEATURES

    ★ Inclination angle measurement range: pitch ±85°, roll angle ±180°

    ★ With hard magnetic, soft magnetic and tilt angle compensation

    ★ Standard RS232/RS485/TTL output interface

    ★ Azimuth angle accuracy: 0.8°

    ★ Inclination resolution: 0.1°

    ★ Inclination accuracy: 0.2°

    ★ Wide temp. range: -40℃~+85℃

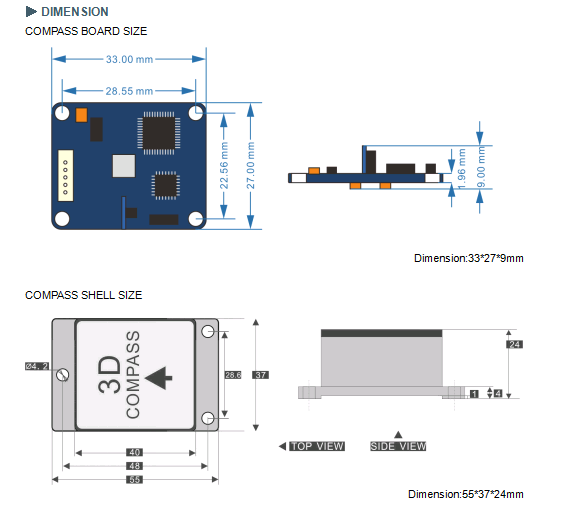

    ★ Dimesion: L55×W37×H24mm

    ★ DC 5V power supply

    ★ IP67 waterproof rating


    ▶ APPLICATION

    ★ Satellite antenna search

    ★ Antenna servo control

    ★ Infrared imager

    ★ Laser rangefinder

    ★ ROV underwater robot navigation

    ★ Special occasion robot

    ★ Marine surveying and mapping


    DDM350B/DCM360B Parameter
    Compass headingHeading accuracy0.8°
    Resolution0.1°
    Pitch range±90°
    Roll range±180°
    Inclination accuracyStatic state 0.2°
    Dynamic 0.5°
    Resolution0.1°
    Tilt compensation angle rangeRoll ±180°
    Pitch <85°
    CalibrationHard iron calibrationyes
    Soft iron calibrationyes
    Magnetic field interference calibration methodOne rotation of the plane (two-dimensional calibration)
    Physical featureSizeL55×W37×H24mm
    RS232/RS485/TTL4 cores 1-meter direct lead cable
    InterfaceStartup delay<50ms
    Output rate20Hz/s
    Baud rate2400 to 115200baud
    Output formatBinary high performance protocol
    PowerSupply voltage(Default) DC +5V
    (Customized) DC 9~36V
    Current (MAX)45mA
    Ideal model35mA
    Sleep modeTBD
    EnvironmentOperating range-40℃~+85℃
    Storage temperature-40℃~+100℃
    Vibration resistance2500g
    EMCAccording to EN61000 and GBT17626
    MTBF≥40000 hours/time
    Insulation resistance≥100 megohm
    Impact resistance100g@11ms,3 Axial Direction (Half Sinusoid)
    Anti-vibration10grms,10~1000Hz
    WeightSingle board: ≤25g ≤135g (including 1 meter cable)
