Production Jig Setup with High Accuracy Digital Inclinometer
▶ FEATURES
★ Best accuracy:<0.005°
★ Repeatability:0.003°
★ Angle resolution:0.001°
★ Maximum measure range:±30°
★ User can set the alarm value by himself
★ Data store function
★ Absolute/Relative measurement can switch
★ Both sides and bottom can measure
★ Double benchmark strong magnet installation
★ Working Temperature : -10°～ +70℃
★ Auto-angle interleaved compensation function
★ Auto temperature drift compensation
★ User can calibrate ZERO by himself
★ Built-in rechargable industry batteries
★ Night vision fours colors screen
★ IP54 protection class
★ °/mm/m Dual units switch function
★ Filter frequency optional
★ Three kinds of measurement mode selectable (radian, angle, mm)
▶ APPLICATION
★ Building construction
★ Automobile four-wheel testing
★ Road slope
★ Machinery installation
★ Piping installation
★ Industrial platform
★ Turntable testing
★ Pan unit angle detection
★ Production jig
▶ GENERAL DESCRIPTION
DMI810/DMI820 is a digital display inclinometer which took RION
company three years to develop professional for various industry
angle controling and measuring.The core of this product is using
the micro-mechanical control principle, dual-core measurement unit,
can use the Y-axis to compensate X-axis during the measurement
process,and then to use RION patent interleaved and temperature
compensation model algorithm to play absolute operation advantages
of the micro-mechanical electronic principles,to ensure that the
instruments measurement with the long-term stability and
repeatability. Single and double axis measurement, measurement
range ±30° measurement, resolution 0.001°, highest accuracy
<0.005° full value,fast response, stable data, products
specially designed for the sides and bottom with magnetic
adsorption installation, both sides of the benchmark can be
measured and using normally,very convenient to use, DMI810 series
has strong scalability, convenient & practical application and
industrial reliability, has absolute cost advantage and has an
absolute competitive advantage in the international market !
▶ SPECIFICATIONS
| PARAMETER | DMI810 | DMI820 | UNIT |
| Meausre Axis | Single Axis | Daul Axis | Axis |
| Angle Measure Range | ±15 ° | ±30 ° | ±15 ° | ±30 ° | ° |
| Angle Measurement Accuracy(Full Range) | <0.005 | <0.01 | <0.005 | <0.01 | ° |
| Angle Measure Resolution | 0.001 | 0.001 | 0.001 | 0.001 | ° |
| Mm/m Measure Range | 267 | 577 | 267 | 577 | mm/m |
| Mm/m Measure Accuracy | 0.1 | 0.2 | 0.1 | 0.2 | mm/m |
| Mm/m Measure Resolution | 0.02 | 0.02 | 0.02 | 0.02 | mm/m |
| Repeatability | 0.003 | 0.003 | 0.003 | 0.003 | ° |
| Measurement Mode | Angle,Degree/Minute/Second,Mm/m Three modes can be set |
| Working Temperature | -10°~ +70℃ |
| Working Humidity | 85%RH |
| Power Supply | 3.7V Charging Lithium Battery |
| Ideal Charging Time | 5h |
| Battery Continuous Working Time | 11h |
| Equipped With Pc Software | Vc Software |
| Data Output Signal | USB2.0 (Virtual Serial Device) |
| Connect Plug In | Standard Usb Connector, Rechargeable |
| Shock Resistance | 10g@11ms,3 Axial Direction (Half Sinusoid) |
| Shock Impact | 10grms,10~100Hz |
| Waterproof Grade | IP54 |
| Material | Aluminum Alloy Anodizing |
| Lcd | 64 True Colors Night Vision Display Screen |
| Lcd Visible Area Size | L57.6*W43.2mm |

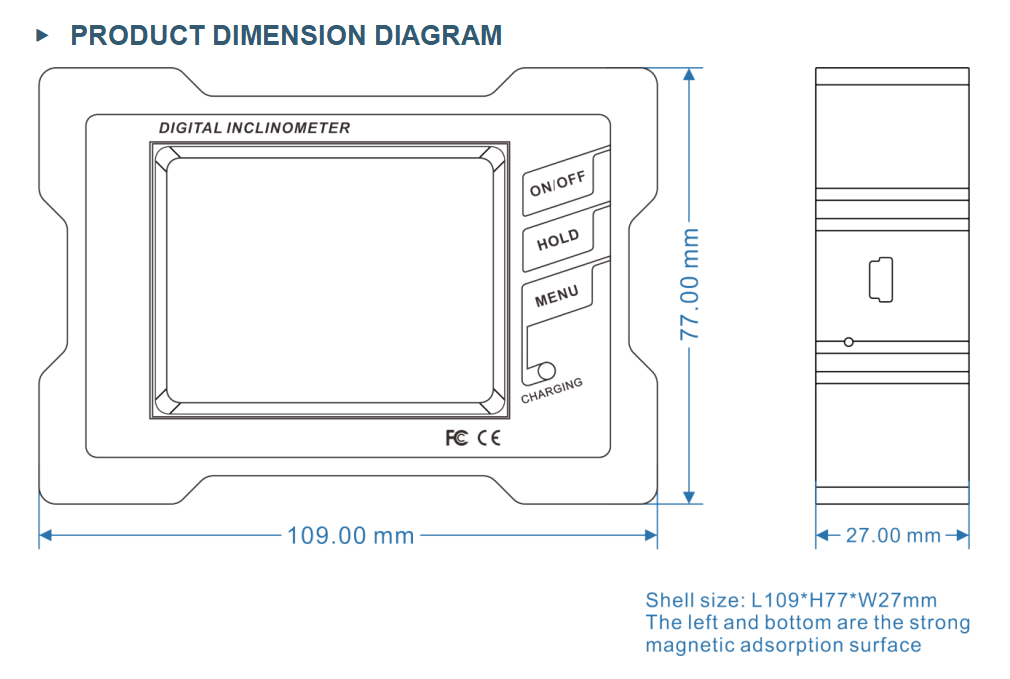

| Size | L109*W77*H27mm |
| Weight | ≤350g |
