    HCM370 Real-Time Heading Data Calculation 3D Digital Compass with Tilt Compensation

    Ask Lasest Price
    Brand Name : RION
    Model Number : HCM370
    Certification : CE
    Price : 438 USD
    Payment Terms : T/T, Paypal
    Supply Ability : 1000,PCS,A WEEK
    Delivery Time : 5-10 work days
    • Product Details
    • Company Profile

    HCM370 Real-Time Heading Data Calculation 3D Digital Compass with Tilt Compensation

    Product Description
    HCM370 Real-Time Heading Data Calculation 3D Digital Compass with Tilt Compensation

    HCM370 Real-Time Heading Data Calculation 3D Digital Compass with Tilt Compensation


    Products Desc.

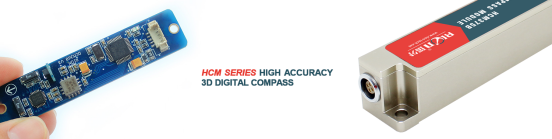

    HCM370B/HCM375B-MP is a high-precision 3D compass with high resolution,

    strong anti-noise ability, and stable temperature drift

    Long strip shape, the width is only 1.95CM. It is IP67 grade and is more suitable

    for drilling measurement; it is small and consumes low power, which can be

    quickly and conveniently integrated into various products.

    Both complete product and PCBA of the senor are available.

    This product integrates a three-axis magnetic field sensor and a three-axis acceleration sensor.

    It uses an industrial single-chip computer with high reliability and strong anti-interference

    ability to calculate heading data in real time, and uses a three-axis accelerometer to

    compensate for a wide range of tilt angles.

    With high-performance, high-stability products, small size and low power consumption,

    make it suitable for many fields such as handheld devices, mobile devices, antenna stability,

    vehicles, and system integration.



    Main Feature:


    ●heading accuracy: 0.5°

    ●roll&pitch measuring range:±180°
    ●tilt resolution: 0.1°
    ●tilt accuracy: <0.2°(full range)
    ●working temp.: -40℃~+85℃
    ●size: L110×W19.5×H19.5mm
    ●with hard and soft magnetic calibration
    ●RS232/RS485/TTL output
    Application :

    ●Satellite antenna search satellite
    ●Marine navigation surveying and mapping
    ●GPS integrated navigation
    ●Antenna servo control
    ●Infrared imager
    ●Laser range finder
    ●Map for plotter
    ●ROV underwater robot navigation
    ●Oceanography measurement instruments
    ●Special occasion robot
    Parameter
    The best heading accuracy
    0.5° tilt<10°
    2.0° tilt >60°
    2.5° tilt<70°
    Pitch accuracy
    0.1°<15°(Measuring range)
    0.1°<30°(Measuring range)
    0.1°<60°(Measuring range)
    0.2°<90°(Measuring range)
    Pitch tilt range
    ±85°
    Roll accuracy
    0.1°<15°(Measuring range)
    0.1°<30°(Measuring range)
    0.1°<60°(Measuring range)
    0.2°<180°(Measuring range)
    Roll tilt range
    ±180°
    Resolution
    0.1°
    Compass tilt the best compensation angle range
    <60°
    Hard iron calibration
    Yes
    Soft iron calibration
    Yes
    Magnetic field interference calibration method
    Plane rotation in 1circle(2D Calibration)
    Dimension
    L110×W19.5×H19.5mm
    Weight
    20g
    RS-232/RS485/TTL interface connector
    5PINconnector
    Start delay
    <50MS
    Maximum output rate
    20Hz/s
    Communication rate
    2400 to 19200baud
    Output format
    Binary high performance protocol
    Power supply
    (Default)DC+5V
    (Customized)DC9~36V
    Current(Maximum)
    40mA
    Ideal mode
    30mA
    Sleep Mode
    TBD
    Operating range
    -40℃~+85℃
    Storage temperature
    -40℃~+100℃
    Resistance shock performance
    2500g
    Electromagnetic compatibility
    According to EN61000 and GBT17626
    MTBF
    ≥40000 hours/times
    Insulation resistance
    ≥100M
    Shock resistance
    100g@11ms,3Times/Axis(half sinusoid)
    Anti-vibration
    10grms,10~1000Hz
    Weight
    80g(not include cable

    FAQ

    Q: How to choose suitable products before ordering?

    A: According to your application, select the measurement axis , the appropriate measuring range, the main parameters of the output, or not sure, please contact us as soon as possible, our staff will be the first time to get in touch with you and provide the best solution and the most preferential price.

    Q: What's kind of payment methods ?

    A: We support T/T and Paypal methods, you can choose any one, after payment, please inform us in time, so that we can arrange your order and deliver the goods as soon as possible.

    Q: How about lead time for order ?

    A: After we receive your payment, the samples will be sent in 3-7 working days. If mass order please confirm the delivery schedule with our sales staff in advance so as to avoid unnecessary delay.

    Q: How about quality inspection before shipment ?

    We have several testing departments will be in strict accordance with the requirements of inspection of goods quality and functions, to ensure the quality of each with 100% qualified product, and the products will be inspected /tested again to ensure no any problem before shipment .

    Q: What's the transportation methods ?

    A: You can arrange courier to pick up goods from our company, or provide your international express account number to pay for your local courier after goods reach to your hands, but also can delivery by DHL, FEDEX, UPS, TNT, EMS... Etc through our shipping forwarder .

    Q: How about after-sale service ?

    A: Please check the package status in time after receipt of the goods as soon as possible, and product performance test, if any quality problem please contact us first, we will deal with your problems and feedback as soon as possible.

    Q: How about product warranty and repair service?

    A: Warranty for one year, In general, we can provide the repaired service in free charge if non damaged within one year , and individual cases can be extended to 3 years or more. If over a certain warranty period or damage caused by user , we will charge a reasonable fee according to the actual situation.

    Q: Are the samples available free of charge?

    A: At first time co-operation, we need charge related cost for samples , because our products belong to the military & Industry grade and with high quality , thus the cost is much more expensive than the average consumer goods. If we work closely together with each other more times in future, we will consider applying for free samples according to your specific requirements and sending them to you, thanks for your understanding .

    Wish a pleasant cooperation with you !
