★ Directional satellite communication antenna elevation measurement
▶ PRODUCT DESCRIPTION
HCA526T-WL is a wireless transmission dual-axis tilt sensor
launched by RION for the industrial field control field. The
product is divided into two parts: wireless induction probe and
wireless data reception. Both parts have independent receiving
antennas. The wireless ISM full-band working frequency is adopted,
which conforms to the ISM band communication standard and does not
need to apply for frequency points. Carrier frequency is within
400-480MHZ. The communication distance can reach 200 meters in the
visible open area. The GFSK modulation mode adopts a
high-efficiency forward error correction channel coding technology,
and improves the capability of data for resisting burst
interference and random interference. The acceleration measurement
structure adopts aluminum alloy shell and full waterproof
structure, which can work outdoors for monitoring application for a
long time. The product is divided into a wireless inclinometer and
a wireless data receiver. The receiver is composed of a receiving
antenna and an aviation connector. The receiver outputs the
acceleration measurement value received by the wireless module
through the RS232/RS485 interface. The user only needs to provide a
power supply and collect its digital signal to measure and analyze
the acceleration and vibration change information of the remote
object in real time. The inclinometer has a built-in 16bit A/D
differential converter with high precision, which can measure the
tilt and pitch angle of the sensor output relative to the
horizontal plane through a 5-order filtering algorithm. The output
interfaces RS485, RS232, RS422 and TTL are optional. Because of the
built-in digital temperature sensor with high precision, the
temperature drift of the sensor can be corrected according to the
change of the built-in temperature sensor to ensure the high
repeatability of the product in low and high temperature
environments. The standard output response frequency can be up to
18 Hz. If higher response frequency is required, we can customize
it according to the user. Products are truly industrial products,
reliable and stable performance, good scalability, a variety of
output options. And is suitable to be apply to various severe
industrial control environments.
HCA516/526T
CONDITION
PARAMETERS
UNIT
Measure range
±10
±30
±60
±90
°
Measure axis
XY
XY
XY
XY
Resolution
0.001
0.001
0.001
0.001
°
Measure accuracy
0.005
0.01
0.02
0.05
°
Long term stability
0.01
0.02
0.05
0.08
°
Zero Temp.coefficient
-40～85℃
±0.002
±0.002
±0.002
±0.002
°/℃
Sensitivity temp-coefficient
-40～85℃
≤50
≤50
≤50
≤100
ppm/℃
Power on time
0.5
0.5
0.5
0.5
S
Response time
0.02
0.02
0.02
0.02
s
Response frequency
5Hz,15Hz,35Hz,50Hz
output signal
RS232/RS485/RS422/TTL/CAN/MODBUS
EMC
According to EN61000 and GBT17626
MTBF
≥50000hours/times
Insulation Resistance
≥100MΩ
Shockproof
100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration
10grms,10～1000Hz
Protection grade
IP67

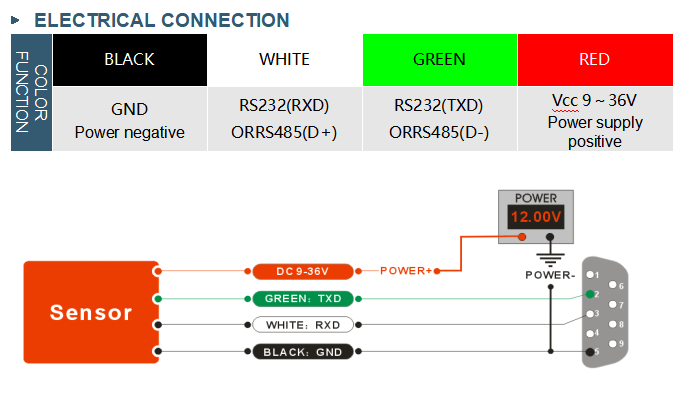

Cables
Standard 1 meter length, wear-resistant, wide temperature, shielded
cable 4 * 0.4mm2 aviation connector
