    PCA826 High Accuracy Vibration Tilt Sensor Inclinometer for Engineering vehicle leveling

    Ask Lasest Price
    Brand Name : RION
    Model Number : PCA826-485
    Certification : CE, ISO
    Price : Negotiation
    Payment Terms : T/T, Paypal
    Supply Ability : 500/month
    Delivery Time : 7 days for samples
    • Product Details
    • Company Profile

    PCA826 High Accuracy Vibration Tilt Sensor Inclinometer for Engineering vehicle leveling

    PCA826 High Accuracy Inclinometer VibrationTilt Sensor for Engineering vehicle leveling


    ▶ INTRODUCTION


    PCA826T can measure the vibration of 0.5~20Hz

    It Output interface RS485, RS422, RS232 optional. The non-contact installation makes PCA826T easy to install or integrate. Strong resistance to external electromagnetic interference, strong anti-shock and vibration ability, widely used in satellite communication system processing vehicles, radar antenna vehicles, etc.


    ▶ MAIN FEATURES

    ★ Biaxial tilt angle measurement

    ★ Range ±1~±60° optional

    ★ Horizontal/vertical optional

    ★ DC 9~36V wide voltage input

    ★ Wide temperature operation -40~+85℃

    ★ Resolution 0.0005°

    ★ Size: L82×W70×H42mm

    ★ Output mode CAN2.0A


    ▶ Usage for

    ★ Wind power monitoring

    ★ Bridge and Dam monitoring

    ★ Ancient building monitoring

    ★ High-speed rail track monitoring

    ★ Ground satellite communication vehicles

    ★ Railway gauge ruler and gauge leveling

    ★ Satellite communication vehicle

    ★ Geological equipment tilt monitoring

    ★ Engineering vehicle leveling


    ▶ INSTALLATION PRECAUTION

    Please install the tilt sensor according to the correct method. Incorrect installation will cause measurement errors. Pay special attention to one "surface" and two "line":

    1) The sensor mounting surface and the surface to be measured must be fixed tightly, flat and stable, if installation surface is unevenness, it will cause the angle error.

    2) The axis of the sensor and the axis to be measured must be parallel, and there should be no angle between the two axes as possible.


    Specification
    PCA826T CONDITIONPARAMETERSUNIT
    Measure range±5±10±30±60°
    Measure axisXYXYXYXY
    Resolution0.00050.00050.00050.0005°
    Measure accuracy@25℃0.0010.0020.0030.005°
    Long-term stability0.020.020.030.04°
    Zero temp coefficient-40~85℃0.00020.00020.00020.0002°/℃
    Sensitivity temp coefficient-40~85℃≤50≤50≤50≤50ppm/℃
    Power on time<0.4<0.4<0.4<0.4S
    Response frequency0.040.040.040.04S
    Output rate5Hz,10Hz,25Hz,35Hz,50Hz,100Hz. Can be set
    Ouput signalRS485/RS422 optional
    EMCAccording to EN61000 and GBT17626
    MTBF≥50000 hour/time
    Insulation Resistance≥100 MΩ
    Shockproof100g@11ms,3 Axial Direction (Half Sinusoid)
    Anti-vibration10grms,10~1000Hz
    Protection gradeIP67
    CablesStandard configuration 1 meter, wear-resistant, wide temperature, shielded cable, mm aviation connector
    Weight385g (exclude cable)

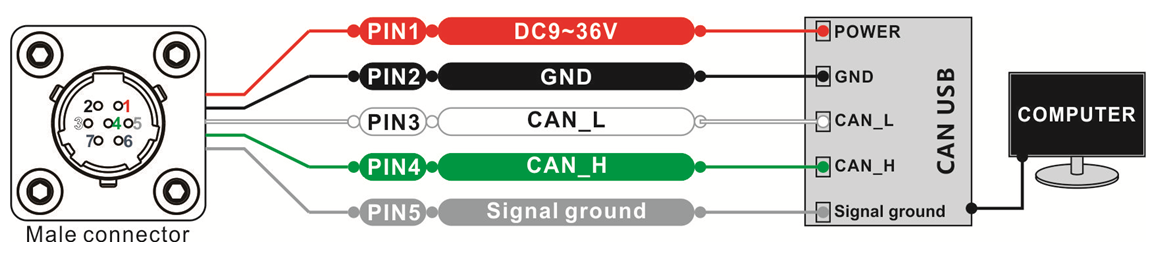

    ▶ ELECTRICAL CONNECTIONS

    CAN wiring definition (7-core wiring definition)

    Line color functionPIN1PIN2PIN3PIN4PIN5PIN6PIN7
    DC9~36VGNDCAN_LCAN_HSignal groundFactory useFactory use
