    HCA396B 2 AXIS HIGH ACCURACY INCLINOMETER SENSOR MODULE RANGE: ±90°

    Ask Lasest Price
    Brand Name : Rion
    Model Number : HCA396B
    Certification : CE, ISO
    Price : US$45
    Payment Terms : T/T,Paypal
    Supply Ability : 3000 Piece/Pieces per Month
    Delivery Time : 7 days for samples
    • Product Details
    • Company Profile

    HCA396B 2 AXIS HIGH ACCURACY INCLINOMETER SENSOR MODULE RANGE: ±90°

    THCA396B 2 AXIS HIGH ACCURACY INCLINOMETER SENSOR MODULE RANGE: ±90°

    PRODUCTION

    HCA396B is a three-axis high-precision inclinometer sensor developed by RION, which is used in industrial engineering industries such as foundation pit inclination, monitoring, and bridge inspection. Inheriting the stability of the HCA series, the accuracy is effectively improved, the temperature drift performance is superior, and the long-term stability is less than 0.001 degrees. At the same time, through the 5th-order filtering algorithm, the roll angle and pitch angle of the sensor can be solved by the 3-axis gravity compound operation. Each product is trimmed within the factory by a multi-faceted turntable to correct the three-axis cross-axis error to ensure minimal impact between the measuring axes in a large range of applications. The product has built-in RS485 interface, and the interface integrates the warranty circuit to ensure that it will not affect the 485 bus. The power supply also uses multi-stage voltage regulation and overvoltage and overcurrent protection circuits. The products are truly industrial grade products with reliable performance and good expandability, suitable for use in a variety of harsh industrial control environments.

    ▶ MAIN FEATURE

    2 axis inclination measure

    range: ±90°

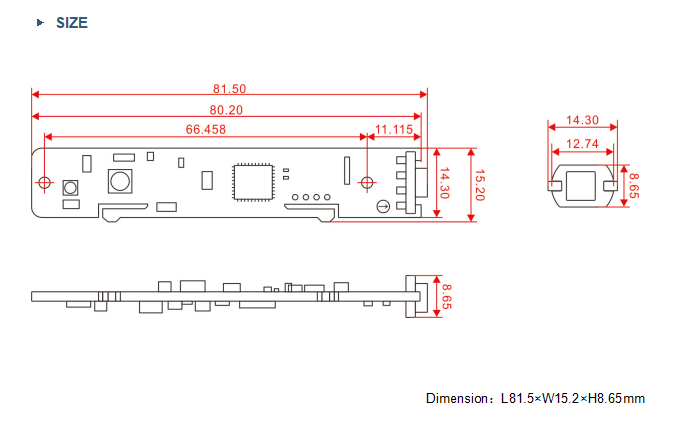

    size:L81.5×W15.2×H8.65mm

    DC 9~14v power supply

    working temp.: -40~+85℃

    resolution: 0.001°

    APPLICATION

    Railway locomotive monitoring

    Bridge inspection

    Shield pipe jacking application

    Geological equipment tilt monitoring

    Oil drilling equipment inspection

    Various engineering machinery inclination measurement


    ▶ SPECIFICATION


    HCA396B 2 AXIS HIGH ACCURACY INCLINOMETER SENSOR MODULE RANGE: ±90°HCA396B

    CONDITION

    PARAMETERS

    UNIT

    Range

    ±90

    °

    Measure axis

    X,Y

    Resolution

    0.001

    °

    Measure accuracy

    @25℃

    0.01

    °

    Long-term stability

    0.01

    °

    Zero temp. coefficient

    -4085

    ±0.0002

    °/℃

    Sensitivity temp. coefficient

    -4085

    ≤50

    ppm/℃

    Power-on startup time

    1

    S

    Response bandwidth

    5

    Hz

    output signal

    RS485/RS232/TTL

    Electromagnetic compatibility

    According to EN61000 and GBT17626

    MTBF

    ≥50000 h/time

    Insulation resistance

    ≥100 Megohm

    Impact resistance

    100g@11ms,Triaxial and identical (half sine wave)

    Vibration resistant

    10grms,101000Hz

    Weight

    5g



    ▶ ELECTRICAL PARAMETERS

    HCA396B 2 AXIS HIGH ACCURACY INCLINOMETER SENSOR MODULE RANGE: ±90°PARAMETER

    CONDITION

    MIN

    TYPICAL

    MAX

    UNIT

    power voltage

    Standard

    9

    12

    14

    V

    Customized

    3.3

    V

    Working current

    No load

    25

    mA

    Working temp.

    -40

    +85

    Store temp.

    -55

    +100
