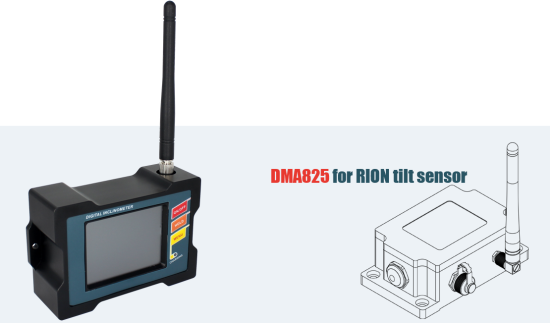

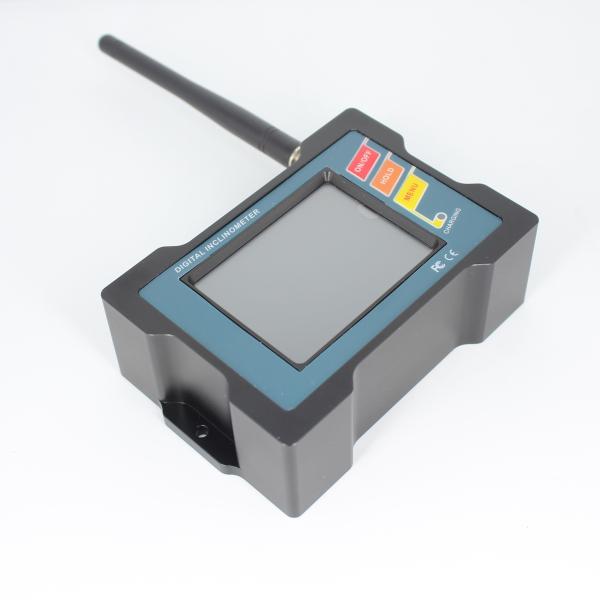

    DAM825 Wireless LoRa Display 470M LoRa communication IP54 protection grade

    Ask Lasest Price
    Brand Name : RION
    Model Number : DAM825
    Certification : CE
    Price : $265.00/Units
    Payment Terms : L/C, Paypal
    Supply Ability : 30000 Unit/Units per Month
    Delivery Time : 5-10 work days
    • Product Details
    • Company Profile

    DAM825 Wireless LoRa Display 470M LoRa communication IP54 protection grade

    DAM825 Wireless LoRa Display 470M LoRa communication IP54 protection grade


    FEATURES

    ★ Remote display of all inclination product data of RION

    ★ Resolution: 0.01°/0.001°

    ★ Powered by lithium battery

    ★ IP54 protection grade

    ★ Wide temperature operation -20~+70℃

    ★ For installation with screw holes

    ★ Shell size: L115×W38×H77mm

    ★ Transmission distance up to: 200m


    APPLICATION

    ★ Engineering vehicle leveling

    ★ Bridge and dam monitoring

    ★ Laser equipment positioning

    ★ Angle control of medical equipment

    ★ Attitude navigation of underground drilling rigs

    ★ Railway gauge and gauge leveling

    ★ Precision machine tool level control

    ★ Geological equipment tilt monitoring


    SPECIFICATIONS

    DMA825ParameterUnit
    Communication method470M LoRa communication/
    Supported resolution0.01/0.001°
    LCD screen64 True Colors Night Vision Display Screen/
    LCD Viewable area sizeL57.6*W43.2mm
    Power3.7V Chargeable lithium batteryV
    Working humidity85%RH
    Storage temperature-20~+35
    Working temperature-20~+70
    charging temperature0~+45
    Charging interface5V Standard USB connector/
    Ideal charging time12hour
    Battery continuous working time8hour
    Anti-vibration10g@11ms,3 Axial Direction (Half Sinusoid)g
    impact resistance10grms,10~100Hzg
    Waterproof gradeIP54/
    MaterialAluminum alloy anodizing/
    SizeL115×W38×H77mm
    Weight300g

    PRODUCT INSTALLATION NOTES

    1. Obstacles should be avoided as much as possible between the display and the sensor installation;

    2. Keep the display and the sensor at the same height as possible;


    SCREEN CALIBRATION INSTRUCTIONS

    1. Press MENU and HOLD at the same time to enter the touch screen calibration confirmation interface, click OK to enter the touch screen calibration, and click EXIT to exit the touch screen calibration;

    2. Enter the touch screen calibration interface, click the small red dots in the four corners of the screen in turn, click once to move once, and the small red dot moves 4 points to automatically exit the calibration
