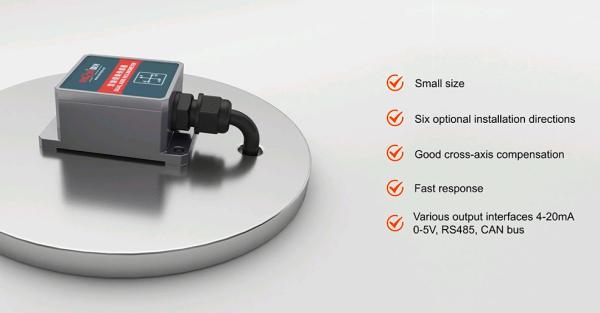

    Mini Single / Dual Axis Inclinometer Digital Angle Senosr Rs232 Rs485 Ttl Modbus Tiltmeter

    Ask Lasest Price
    Brand Name : RION
    Model Number : LCA326T-90
    Certification : CE
    Price : $53.00/Pieces
    Payment Terms : T/T, PayPal
    Supply Ability : 5000/month
    Delivery Time : 7 days for samples
    • Product Details
    • Company Profile

    Mini Single / Dual Axis Inclinometer Digital Angle Senosr Rs232 Rs485 Ttl Modbus Tiltmeter


    CE ROHS passed Low Cost Mini Single /dual axis Digital Angle Senosr Inclinomter RS232/RS485/TTL Modbus Tiltmeter China Factory



    ▶ MAIN FEATURE

    ★ Single / dual axis inclination measurement

    ★ Resolution 0.02 °

    ★ Range ± 10 ~ ± 90 ° optional

    ★ Standard DC 5V power supply

    ★ Wide temp. operation -40 ~ + 85 ℃

    ★ IP67 protection level

    ★ Output mode RS232 / RS485 / TTL

    ★ Small size 55 × 37 × 24mm (customizable)

    ★ High anti-vibration performance> 3500g


    APPLICATION

    ★ Electric blind chair leveling

    ★ PTZ operation monitoring

    ★ Satellite antenna positioning

    ★ Medical equipment leveling

    ★ Car chassis measurement

    ★ Four-wheel positioning system

    ★ Various engineering machinery angle control



    ▶ PRODUCT INTRODUCTION

    LCA316T / LCA326T series products are a new generation of digital small volume MEMS tilt sensor launched by RION Technology. It has a built-in dual-channel earth gravity tilt unit, which can be converted into tilt angle changes by measuring static gravity acceleration. So that the tilt angle of the sensor output relative to the horizontal plane can be measured. Output method RS232, RS485 or TTL. Because it is a built-in MCU control system, which correct the linearity of the sensor output twice, making up the accuracy drop for the analog type because of insufficient correction.

    This product adopts non-contact measurement of the original quantity, which can output the current attitude and inclination in real time. It is simple to use. Is industrial automation control,

    It is an ideal choice for measuring posture of industrial automation console. It has strong resistance to external electromagnetic interference and can adapt to long-term work in harsh industrial environments. This product is mainly suitable for static and slow changing dynamic measurement, but not for fast changing dynamic measurement.


    ▶ PARAMETER TABLE


    Mini Single / Dual Axis Inclinometer Digital Angle Senosr Rs232 Rs485 Ttl Modbus TiltmeterLCA316T/326T CONDITION

    PARAMETER

    UNIT

    Measure range

    ±10

    ±30

    ±60

    ±90

    °

    Measure axis

    X Y

    X Y

    X Y

    X Y

    Axis

    Resolution

    0.02

    0.02

    0.02

    0.02

    °

    Measure accuracy

    @25

    0.1

    0.1

    0.1

    0.1

    °

    Zero Temp. coefficient

    -4085

    ±0.02

    ±0.02

    ±0.02

    ±0.02

    °/

    Sensitivity temp. coefficient

    -4085

    ≤150

    ≤150

    ≤150

    ≤150

    ppm/

    Power on start time

    0.5

    0.5

    0.5

    0.5

    S

    response frequency

    20

    20

    20

    20

    Hz

    Output rate

    5Hz,15Hz,35Hz,50Hz, can be set

    Output signal

    RS232/RS485/TTL

    EMC

    According to EN61000 and GBT17626

    MTBF

    98000 hours/times

    Insulation Resistance

    ≥100 MΩ

    Shockproof

    100g@11ms,3 Axial Direction (Half Sinusoid)

    Anti-vibration

    10grms,101000Hz

    Protection grade

    IP67

    Cables

    standard configuration: 1 meter wearproof,grease proofing,wide temperature,Shielded cables 4*0.3mm2

    Weight

    ≤135g (including 1 meter cable)
